Alpha Wireless 3.3 - 3.8GHz 11dBi Dual-Slant Omni CBRS Antenna w/ 2x N-Female Connectors [AW3089-T0]
AW3089-T0
by Alpha Wireless
Sold out
Original price
$645.00
Original price
$645.00
-
Original price
$645.00
Original price
$645.00
Current price
$613.95
$613.95
-
$613.95
Current price
$613.95

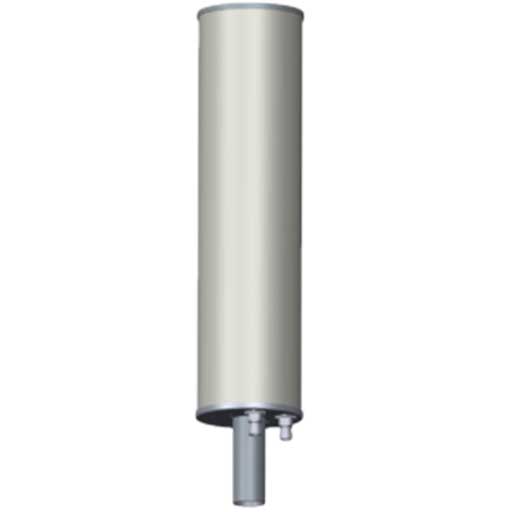

Alpha Wireless AW3089-T0 is a dual slant omnidirectional CBRS antenna operating between 3.3 and 3.8GHz. This model has a T0° electrical down-tilt, 11dBi gain, and 2 N-Female connectors.
RF Specifications• Frequency Range: 3300 - 3800MHz
• Polarization: ±45° Slant Linear
• Gain: 11dBi
• Azimuth Beamwidth: 360°
• Elevation Beamwidth: 8°
• Electrical Downtilt: T0°
• Electrical Downtilt Deviation: 1°
• Impedance: 50Ω
• VSWR: 1.5:1
• Return Loss: 4dB
• Isolation: 25dB
• Upper Sidelobe Suppression (peak to 20°): 15dB
• Cross Polar Discrimination at Sector: 10dB
• Maximum Effective Power per Port: 50W
Mechanical Specifications
• Dimensions (Lx∅): 948 x 168mm (37.3 x 6.6")
• Packing Size: 1150 x 200 x 200mm (45.2 x 7.8 x 7.8")
• Net Weight (antenna): 5kg (11lbs)
• Net Weight (mount): 1kg (2.2lbs)
• Shipping Weight: 6.1kg (13.2lbs)
• Connector Quantity: 2 x N-Type Female
• Connector Position: Bottom
• Wind-load Frontal: 300N
• Survival Wind Speed: 200kmh (125mph)
• Radome Material: UV-Stabilized PVC
• Radome Color: Light Gray (7035 RAL)
• Product Compliance Environmental: RoHS
• Lightning Protection: DC Grounded
• Cold Temperature Survival: -40°C (-40°F)
• Hot Temperature Survival: +70°C (158°F)
