Wireless service providers and enterprises need reliable, high-quality broadband connectivity that can be rapidly deployed and expanded. The ePMP architecture provides highly scalable broadband access solution that will allow you to build and expand your network with a faster return on investment. Cambium Networks’ radios deliver bandwidth-intensive services such as VoIP, video and data to end users in multiple vertical markets, with high performance and exceptional reliability. The new ePMP platform, operating in 2.4GHz and 5GHz, is the most effective connectivity solution for reaching the under and unconnected around the world. Quality of Service (QOS) allows you to confidently offer triple play services – VoIP (Voice over IP), video and data. Providing your customers with excellent service quality ensures their continued loyalty and transforms them into advocates, helping WISPs and enterprises expand their business.

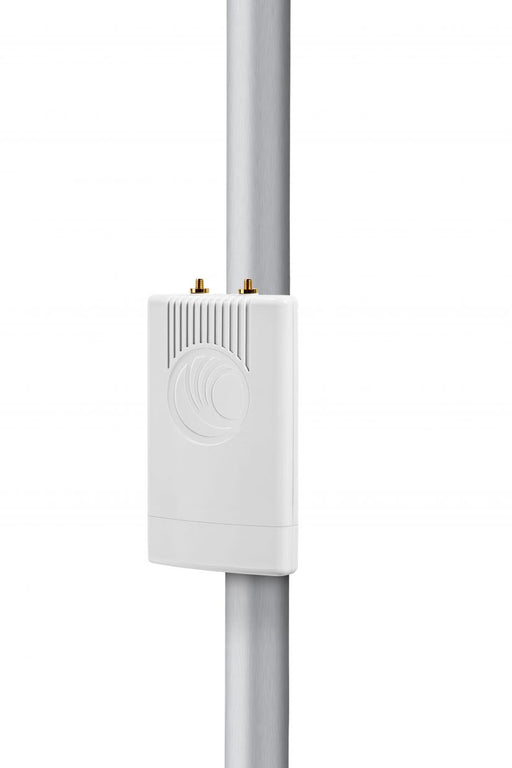

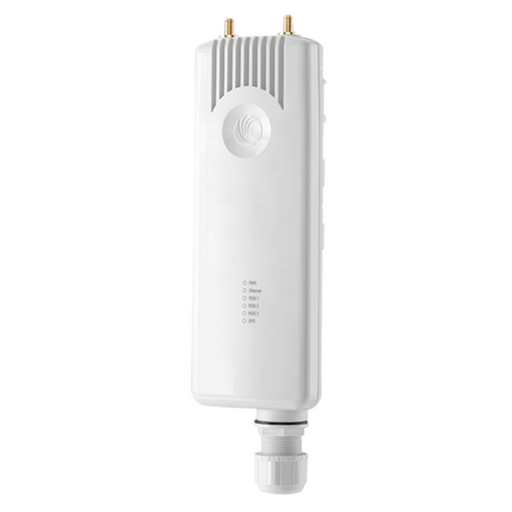

The Cambium Networks ePMP 1000 GPS Sync Radio provides more than 200 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates. Utilizing GPS sync, the ePMP is an ideal fit for networks that require capacity and reliability for superior QoS in remote and underserved areas. This integrated PTP and PMP solution features an efficient GPS synchronized operational mode that permits highly scalable frequency reuse. When deployed with a sector antenna, the ePMP 1000 GPS Sync Radio can be configured as a GPS Synchronized Access Point serving ePMP Integrated Radios configured as Subscriber Modules. When deployed with a high gain point to point antenna, the ePMP GPS Sync Radio can be configured to be a GPS Synchronized Backhaul Master, forming a PTP link with another ePMP Radio module

Product specifications:

Channel spacing: Configurable on 5MHz increments
Frequency range: 2.4GHz: 2402 – 2472MHz
Channel width: 20MHz or 40MHz
MAC (media access control) layer: Cambium proprietary
Physical Layer: 2x2 MIMO/OFDM
Ethernet interface: 100/1000BaseT, rate auto negotiated (802.3af compliant)
Powering methods supported: 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply
Protocols used: IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, FTP
Network management: HTTPs, FTP, SNMPv2c
VLAN: 802.1Q with 802.1p priority
Subscribers per sector: Up to 120
ARQ: Yes
Nominal receive sensitivity (W/ FEC) @ 20MHz Channel: MCS1 = -90 dBm to MCS15 = -62 dBm (per branch)
Nominal receive sensitivity (W/ FEC) @ 40MHz Channel: MCS1 = -87 dBm to MCS15 = -59 dBm (per branch)
Modulation levels (ADAPTIVE): MCS1 (QPSK 1/2) to MCS15 (64QAM 5/6)
Latency (nominal, roundtrip): 6 ms (Flexible Frame Mode), 17 ms (GPS Sync Mode)
GPS Synchronization: Yes, via Internal GPS, CMM3, or CMM4
Quality of service: Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority.

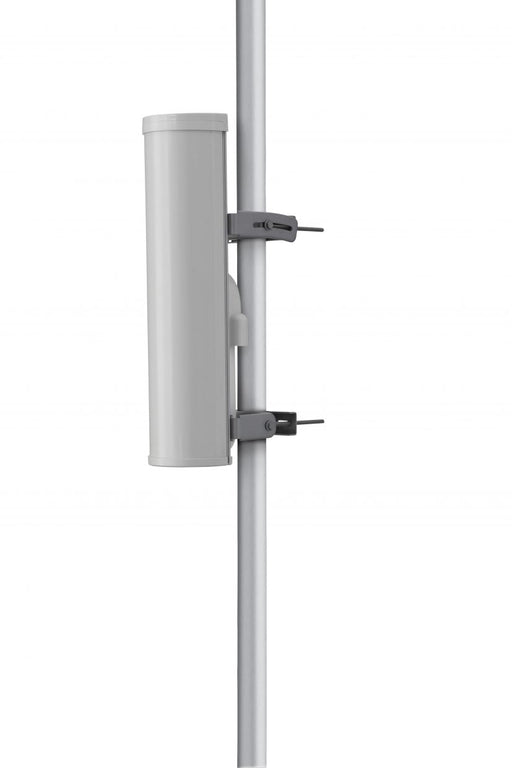

Antenna: Sector antenna with 90° 3dB beam width available
Transmit power range: -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Antenna connection: 50 ohm, RP (Reverse Polarity) SMA
Surge suppression: 1 Joule Integrated
Environmental: IP55
Temperature: -30°C to +60°C (-22°F to +140°F)
Weight: 5.1 kg (10 lbs) with antenna, 0.52 kg (1.1 lbs) without antenna
Wind survival: 200 km/hour (120 mi/hour) with antenna
Dimensions (H x W x D): Radio: 26.9 x 11 x 7.7 cm (10.6 x 4.3 x 3.0 in) Antenna (incl brackets): 80cm x 22.5cm x 24cm (31.5 x 8.9 x 9.4 in)
Power consumption (over 100m CAT5 cable): 10 W Maximum, 7.5 W Typical
Input voltage: 23 to 56 V
Encryption: 128-bit AES (CCMP mode)
FCCID: 2.4 GHz: Z8H89FT0012 / 5 GHz: Z8H89FT0012

Product Includes:

(1) ePMP 1000 2.4GHz Connectorized radio - FCC

(1) 30V Power Supply, US cord

(1) Mounting Strap
