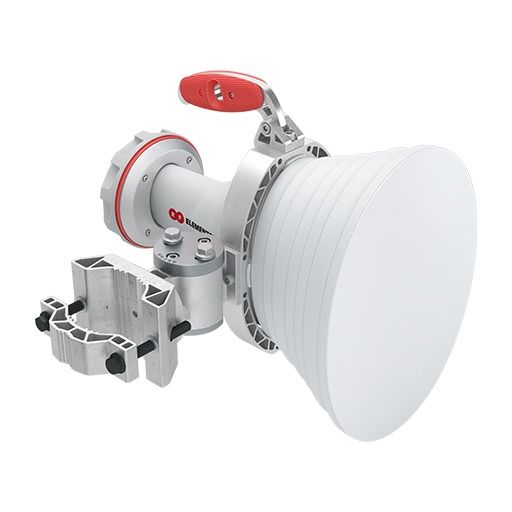

RF Elements 30º Asymmetrical Beam Antenna [AH2030-TP]

BeamSwitch feature enables mounting of the antenna with 90° rotation by swapping the position of the handle and the bracket. AH2030-TP can provide a 20° azimuth and 30° elevation beamwidth option. The extruded aluminum ring improves the structural strength of the antenna attachment and makes the BeamSwitch flip easy and fast.

• Antenna Connection: TwistPort - Quick Locking Waveguide Port
• Antenna Type: Horn
• Materials: UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminum, Stainless Steel
• Environmental: IP55
• Pole Mounting Diameter: 40-80 mm (we recommend as close to 80mm as possible)v
• Temperature: -35°C to +60°C (-31°F to +140°F)
• Wind Survival: 160 km/hour
• Wind Loading: 67 N at 160km/h
• Mechanical Adjustment: ± 20° Elevation, ± 20° Azimuth

• Frequency Range: 5180 - 6000 MHz
• Gain: 20.5dBi
• Azimuth Beam Width -3 dB: H 21° / V 21°
• Elevation Beam Width -3dB: H 15° / V 15°
• Azimuth Beam Width -6dB: H 30° / V 30°
• Elevation Beam Width -6dB: H 20° / V 20°
• Beam Efficiency: 95%
• Front-to-Back Ratio: 35 dB
