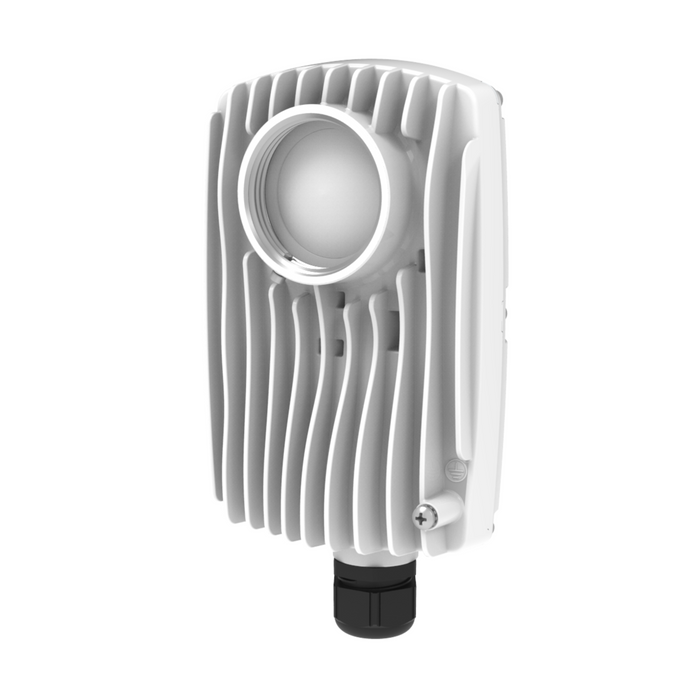

Mimosa C6x 1.75Gbps OFDMA PTMP Radio 100-00111 [C6x]

C6x by Mimosa
Sold out
Original price $195.00 - Original price $195.00
Original price
$195.00
$195.00 - $195.00
Current price $195.00

Suggested replacement for the Cx5

Super Flexible and Super Fast

The C6x sets a new bar for affordable speed, as well as interference reduction. With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands (which varies by country), the C6x achieves extremely low latency speeds of up to 1.75 Gbps. The C6x can be used as a PTMP (point-to-multipoint) client radio.

The Basics

  • 1.75Gbps Max PTMP (IP) Throughput
  • 8–25dBi Gain
  • 5.150–6.425GHz Extended Frequency

Integrated Radio with Modular Antenna Options

The C6x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility for short to long range deployments.

Applications

  • Broadband Service Providers
  • Public Safety Networks
  • Enterprise & Campus Connectivity
  • Multipoint Distribution for Security
  • Smart Cities & W

Superior Noise Mitgation

The C6x reduces in-band noise impact across the operating channel with dramatically smaller 2 MHz resource units (RU) sizes instead of legacy OFDM solutions, where any noise impacted the full channel. Thanks to Wi-Fi 6E and OFDMA, the C6x can even be used in dense, urban environments.

Take PTMP to a New Level

Achieving up to 1.75 Gbps in PTMP (point-to-multipoint) deployments, the C6x pairs together with new multi-user OFDMA scheduling and beamforming technologies on the A6 access point to enable massive subscriber scaling, advanced noise management, and access to the new, low-noise 6 GHz band.

Ultra-Rugged

The C6x is IP67 rated, which means it can withstand the harshest elements and environments. Coupled with next-gen RF noise fighting features and new low-noise 6 GHz band support, the C6x leads the way in dependable connectivity.

Product Specifications:

Performance

  • Max Throughput: 1.75 Gbps IP aggregate UL/DL (2402 Mbps PHY)
  • Wireless Protocols:
    • WiFi Interop; Auto-TDD (future release);
    • PTMP TDMA (future release)
  • Modes:
    • Default mode:
    • PTMP client, 1.75 Gbps

Radio

  • MIMO & Modulation:  2x2, PTMP MU-MIMO client support, OFDMA,  BPSK-1024QAM
  • Bandwidth: 20/40/80/160 MHz channels, tunable to 5 MHz increments
  • Frequency Range: PTMP: 5150–6425 MHz1 2 (restricted by country of operation)
  • Max Output Power: 24 dBm
  • Sensitivity (MCS 0):
    • -87 dBm @ 80 MHz
    • -90 dBm @ 40 MHz
    • -93 dBm @ 20 MHz

Power

  • Max Power Consumption: 20 W
  • System Power Method:  Passive PoE
  • PoE Power Supply: Passive POE compliant, 48–56 V (PoE injector not included)

Physical

  • Dimensions:
    • Height: 178mm (5”)
    • Width: 113mm (4.5”)
    • Depth: 67mm (2.6”)
  • Weight: 0.7 kg (1.54 lbs)
  • RF Connector Type: X-series twist-on
  • Enclosure Characteristics: Die-cast aluminum, UV stabilized paint, with outdoor UV stable plastic radome lens
  • Mounting: Dual attached pole mount straps
  • Grounding: Ground lug
