Mimosa A6 PTMP 7Gbps Wireless Access Point 8x8 MU-MIMO 100-00113

A6 by Mimosa
Sold out
Original price $1,999.00 - Original price $1,999.00
Original price
$1,999.00
$1,999.00 - $1,999.00
Current price $1,999.00

Product Features:

  • 10 Gigabit Ethernet: (2) SFP+ (optical) ports
  • Management Services
  • Smart Spectrum Management


Product Specifications:
  • Max Throughput: 7Gbps IP aggregate UL/DL (9608Mbps PHY)
  • Wireless Protocols: WiFi Interop; TDMA (future release)
  • MIMO & Modulation: 8x8MU-MIMO; OFDMA, BPSK-1024QAM
  • Bandwidth: Single or dual 20/40/80/160 MHz channels
  • Frequency Range: 5150MHz – 6425MHz Restricted by country of operation
  • Max Output Power: 29dBm
  • Rx Sensitivity: @ 1024 QAM
          -47dBm @ 160MHz
          -50dBm @ 80MHz
          -53dBm @ 40MHz
          -56dBm @ 20MHz
  • Enclosure Characteristics: Outdoor UV-stabilized, engineered polymer with integrated metal mounting back

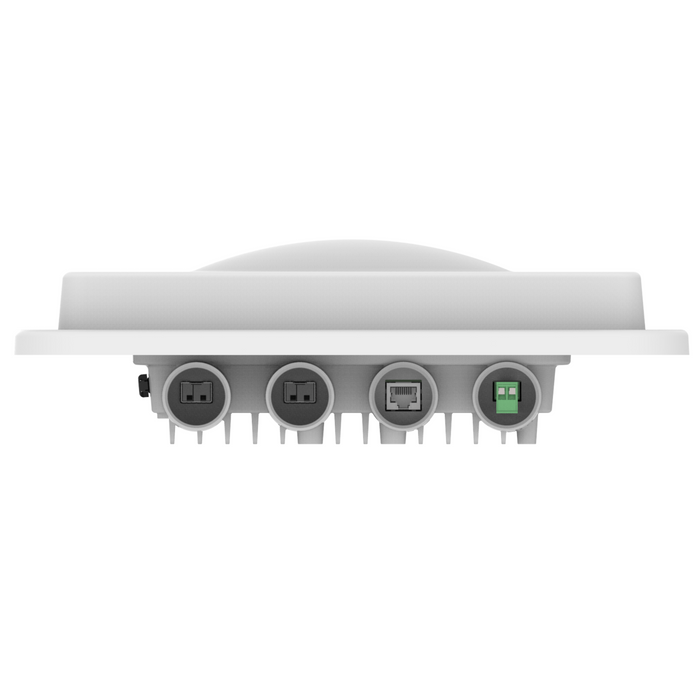

  • Network Interface: (1) GbE copper PoE, (2) 10GbE SFP+ (optical)
  • Gain: 24dBi with adaptive beamforming
  • Beamwidth: 90° azimuth, 7° elevation
  • Front-to-Back Ratio: >30dB
  • Cross-Polar Isolation: >20dB
  • Polarization: Dual-linear XPIC
  • Max Power Consumption: 40W
  • System Power Method: Outdoor PoE or DC
  • PoE Power Supply: Passive PoE compliant, 48–56 V (not included)
  • Outdoor Ingress Protection Rating: IP67
  • Operating Temperature: -40°C to +55°C (-40°F to 131°F)
  • Security: WPA3; AES; RADIUS; 802.1x authorization
  • QoS: Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
  • VLAN: Per subscriber VLAN, Q-in-Q, triple tagging; Management VLAN
  • Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
  • Approvals: FCC Part 15.407; IC RSS210; CE (RED, EMCD, LVD, RoHS); ETSI 301 893/302 502
  • RoHS Compliance: Yes


Product Includes:


(1) Mimosa A6 Access Point 100-00113

PoE Power Supply Not Included: PoE-50V-NA
