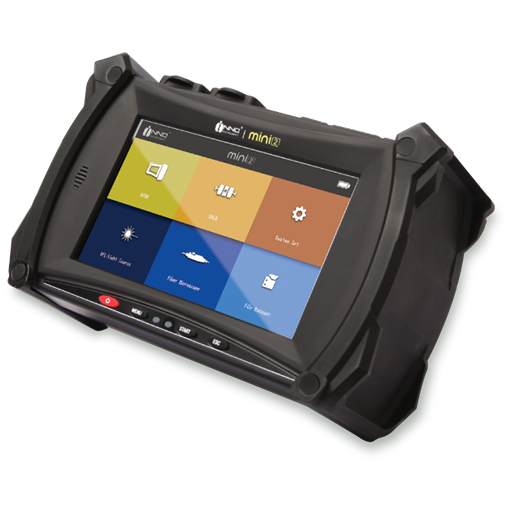

INNO Instrument View Mini 2 1310/1550nm 32dB/30dB OTDR Kit

MINI2 by INNO Instrument
Sold out
Original price $2,800.00 - Original price $2,800.00
Original price
$2,800.00
$2,800.00 - $2,800.00
Current price $2,800.00

Inno Instruments View Mini 2 1310/1550nm 32dB/30dB OTDR Kit is used in the installation and maintenance of fiber optic cables. It features high precision test capabilities, fast response times, and easy to learn operation. The multi-point capacitive touch screen allows for user-friendly operation. The MINI2 OTDR is compactly designed and very lightweight and hand-held.


Product Features
  • SOLA, Simplify the OTDR Test Process
  • 5" Touch Screen with Smart GUI
  • 8GB Internal Storage with Internal SD Card and External USB Memory
  • Built-In VFL and Light Source
  • Very Light Weight and Hand-held
Product Specifications
  • Display: 5 inches, High Brightness TFT LCD, resolution of 800×480
  • Distance Unit: m / km / mile / ft
  • Dynamic range: 1310nm / 1550nm, 32dB / 30dB
  • Measurement range (km): 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
  • Measurement range (mile): 0.81, 1.55, 3.11, 6.22, 12.4, 24.8, 49.6, 74.6, 99.4, 223.7mile
  • Pulse width: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 10μs, 20μs
  • Event dead zone: 1m
  • Attenuation dead zone: 5m
  • Distance accuracy: ±(1m+Distance×2.5×10-5 +Sampling resolution)
  • Loss scale linearity: ±0.1dB or ±0.05dB / dB
  • Sampling points: 110,000 points
  • Resolution: 0.04m ~ 10.24m
  • Operating mode: Press keys and touch screen
  • Battery capacity: Operating Time : Up to 12hours
  • File format: SOR(Telcordia), BMP, JPG
  • External connection: USB 2.0
  • Compatible connector: FC, SC (APC or UPC)
  • Power supply: AC Input 100-240V, 50-60Hz / DC Input 19V, 3.42A
  • VFL module: Operating wavelength: 650nm ±10nm, Universal interface: 2.5mm
  • Light source: Operating wavelength: 1310nm / 1550nm ±10nm
  • Operating Condition: -10~50℃, 0%~45% (no moisture condensation)
  • Storage Condition: -20~60℃, 0%~95% (no moisture condensation)
  • Dimensions: 4.52H x 6.81W x 2.51D inches (115H x 173W x 64D mm, excluding rubber bumper)
Product Includes:
  • (1) View MINI2 with VFL installed
  • (1) Power Cable
  • (1) AC Adapter
  • (1) Carrying Pouch
  • (1) User Manual
  • (1) Touch Pen
