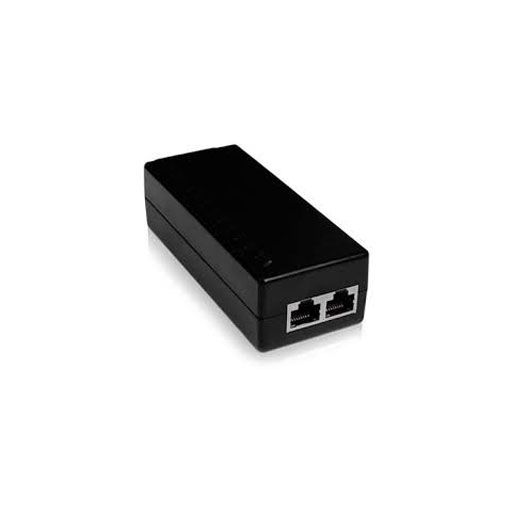

IgniteNet Replacement 24V Passive PoE Injector [ICC-POE-24-US]

IgniteNet PoE Injector is a replacement 24V Passive PoE injector for use with the IgniteNet Spark line, SkyFire line, and MetroLinq line.

• IgniteNet SkyFire
• IgniteNet Spark
• IgniteNet MetroLinq

• Ethernet In: 1000 Mbps Active PoE
• Ethernet Out: 1000 Mbps Passive PoE
• PoE Mode Switch: PoE Out 4 Pair / 2 Pair
• Weather Rating: Indoor
• Temperature Rating: -40 to 40C
• PoE Power Rating: up to 24W
• PoE Input: 37 - 57V
• PoE Output: 24 V +/- 10%
• PoE Pinout 4 Pair Mode: + (1,2 & 4,5) - (3,6 & 7,8)
• PoE Pinout 2 Pair Mode: + (4,5) - (7,8)
• Cable Length (Out): 100m (Max)
