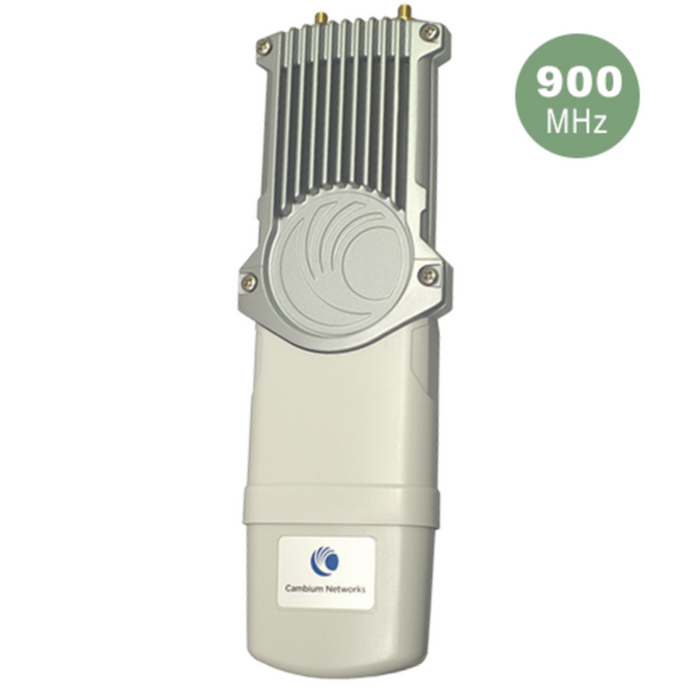

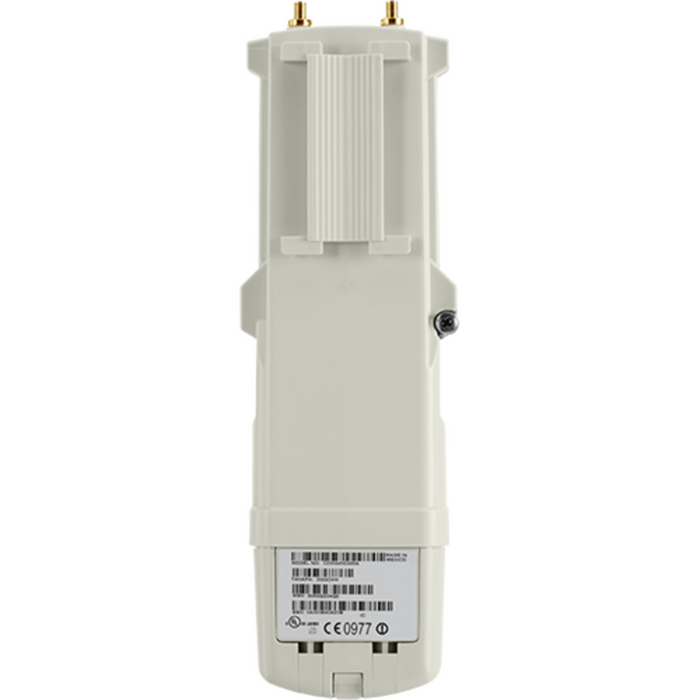

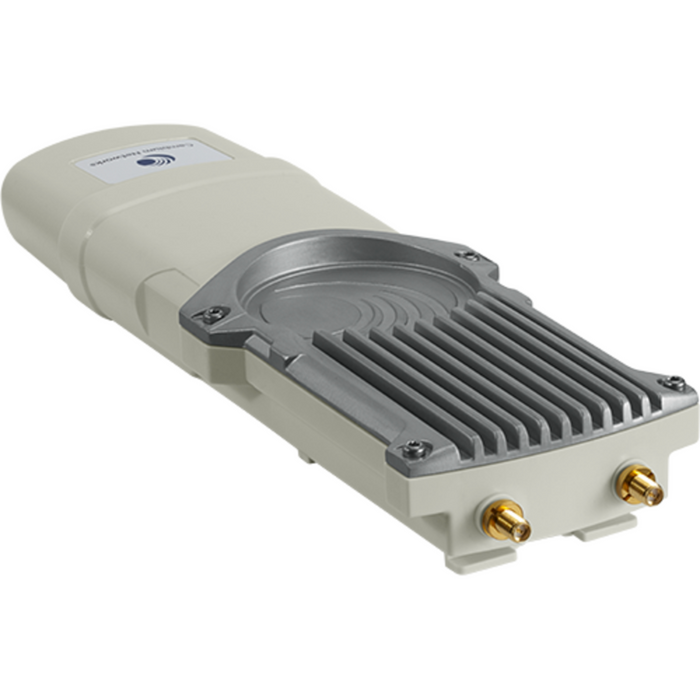

Cambium PMP 450i 900Mhz Subscriber Module SMA

Cambium Networks PMP 450i 900MHz is the premiere outdoor fixed wireless platform providing quality, performance, unmatched spectral efficiency and unrivaled scalability. The PMP 450i 900 MHz allows for deeper frequency propagation to suit the needs of rural broadband deployments, SCADA and sensor data backhaul and even video surveillance applications.

Product Features:

• Deeper frequency propagation for Cambium Networks PMP 450 platform
• Provides a reliable link for near and non-line-of-site (NLOS) deployments
• 100Mbps subscriber capacity in a 20 MHz channel
• Access point is now 802.3at compatible and includes an AUX port, while the Subscriber can re-use the 30 VDC power supplies common to the PMP 100 platform.

• Frequency: 902 - 928MHz
• Channel Spacing: Configure on 0.5MHz increments
• Channel Width: 5, 7, 10, or 20MHz
• Physical Layer: 2x2 MiMO OFDM
• Ethernet Interface: 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant (SM is 10/100BaseT only)
• Protocols: IPv4, UDP, TCP, IP, ICMP, Telnet, SNMP, HTTP, FTP
• Network Management: HTTP, HTTPS, Telnet, FTP, SNMP v3
• VLAN: 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID
• Subscriber per Sector: up to 238
• Max Range: 120mi (190km)
• Latency: 3-5ms

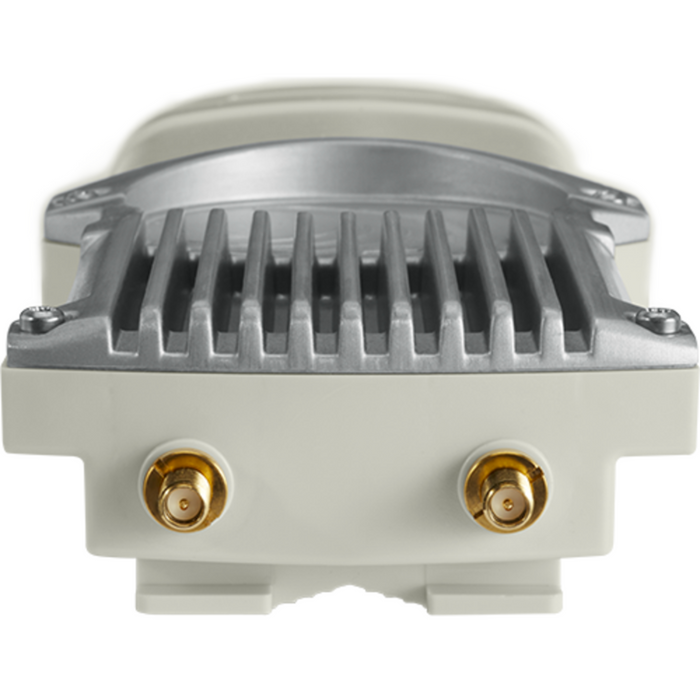

• Antenna Connection: 50ohm, SMA
• Transmit Power Range: 22dB dynamic range (to EIRP limit by region) (1dB step)
• Maximum Transmit Power: 25dBm
• Surge Supression: EN61000-4-5: 1.2us/50us, 500 V voltage waveform
• Operating Temperature: -40 to 140deg F (-40 to 60deg C)
• Power Consumption: 12W typical, 15W max
• Input Voltage: 20 - 32V DC
• Encryption: 56-bit DES, FIPS-197 128-bit AES
• Environment: IP55
