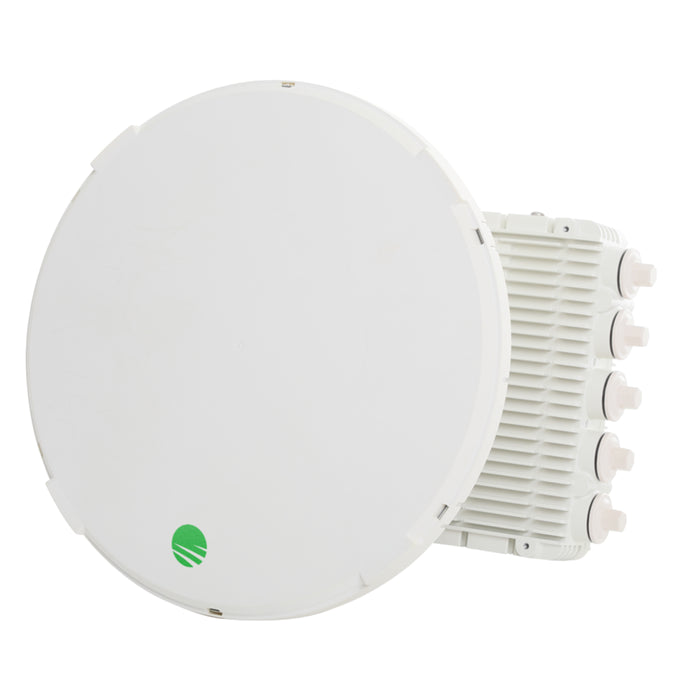

Siklu EtherHaul-8010FX ODU Tx Low Power POE DC (No Capacity) (VEHP238)

EH-8010FX-ODUL-N-2C1P-EX-D by Siklu
Save 5% Save 5%
Original price $5,390.00
Original price $5,390.00 - Original price $5,390.00
Original price $5,390.00
Current price $5,122.00
$5,122.00 - $5,122.00
Current price $5,122.00

Siklu EtherHaul-8010FX ODU Tx Low Power POE DC 10Gbps capable Radio w/AES delivers 10Gbps Full Duplex throughput for high capacity networks in Metro, Aggregation and Trunking applications. The EH-8010FX radio delivers 10Gbps full duplex point-to-point wireless Ethernet connectivity with the longest mmWave reach by means of the highest system gain in the market. Incorporating dozens of Siklu innovations, the EH-8010FX is based on the same platform that has been deployed in tens of thousands of links from the EtherHaul family.

Product Applications:

  • Fiber Network Extension/ Backup
  • Enterprise Multi Gigabit-Connectivity
  • Metro and Aggregation Networks
  • Multi-Dwelling Unit Gigabit Broadband
  • Mobile Backhaul

Product Specifications:

  • Frequency/Duplexing: 71-76GHz / 8-86GHz, FDD
  • Channel Bandwidth, Modulation & Adaptive Rate: 50/1250/2000MHz, Adaptive bandwidth, coding and modulation - boost gain over 20dB
  • Throughput: 10000Mbps full duplex
  • Tx Power: BPSK: +18dBm, QAM128: +14dBm
  • Receive Signal Level (RSL): RSL @ BPSK = -75dBm, RSL @ QAM128 = -50dBm
  • Reach: 1.7/2.3mile @ 99.5% availability (rain zone K/E, 2ft ANT.)
  • Interfaces: 1 combo 10GE port: 802.3bz (RJ-45, copper) oir SFP+ (MMF or SMF), 1GE port: 802.3ab (RJ-45,copper)
  • Power Supply: PoE+ or 36 - 57VDC: 50W
  • Management & Provisioning: In/Out-of-band management, Web GUI or CLI, SNMPv2/3, TACAS+, RADIUS, Zero-touch turn-up
  • L2, Traffic Management: Transparent Bridge, VLAN encapsulation QoS Aware Traffic Management
  • Security: AES (factory option)
  • Timing: Synchronous Ethernet and 1588v2 TC (factory option)
  • Conformance: Radio: USA FCC Part 15.101 & ETSI EN 302 217; EMC: USA FCC 47CFR.part 15 & ETSI EN 301 489; Safety UL/EN 60950
  • Environmental: Operating Temperature: -45° to +55°C (-49° to 131°F)
  • Ingress Protection Rating: IP67
  • Dimensions: ODU + 0.5ft antenna: 9.17" x 8.11" x 5.55" (23.3cm x 20.6cm x 14.1cm), ODU + 1ft antenna (Dia. x Depth): 12.6" x 4.6" (32cm x 13cm), ODU + 2ft antenna (Dia. x Depth): 25.6" x 15.35" (65cm x 37cm)
  • Weight: ODU + 0.5ft antenna: 9.2lbs. (4.1kg), ODU + 1ft antenna: 9.9lbs. (4.4kg), ODU + 2ft antenna: 24.3lbs (10.9kg)
