Mimosa Connectorized Backhaul Radio 11GHz 1.5Gbps GPS-synch MiMO 4x4:4

B11 by Mimosa
Sold out
Original price $2,888.00 - Original price $2,888.00
Original price $2,888.00
$2,888.00
$2,888.00 - $2,888.00
Current price $2,888.00
Half-link, need to purchase 2 units of this product to make a complete link

The Mimosa B11 can be paired with Jirous Antennas (part numbers: JRMC-1200, JRMC-900, JRMC-680)

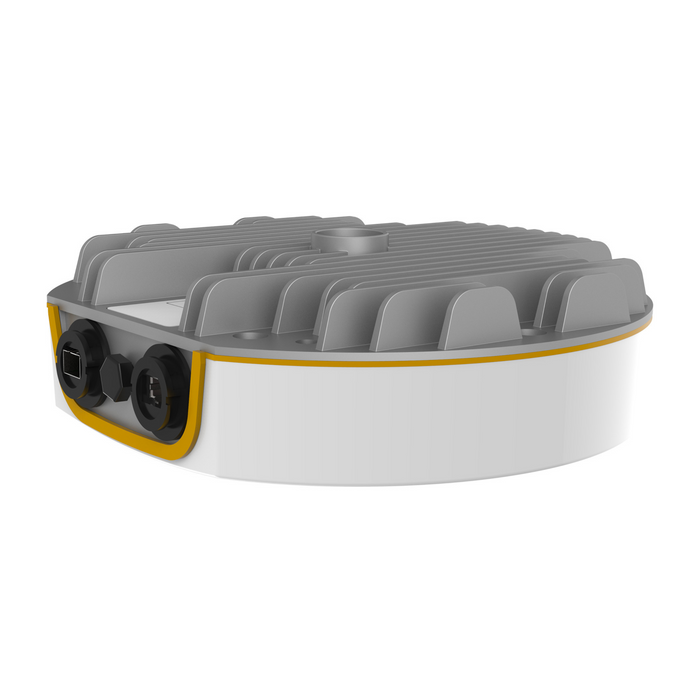

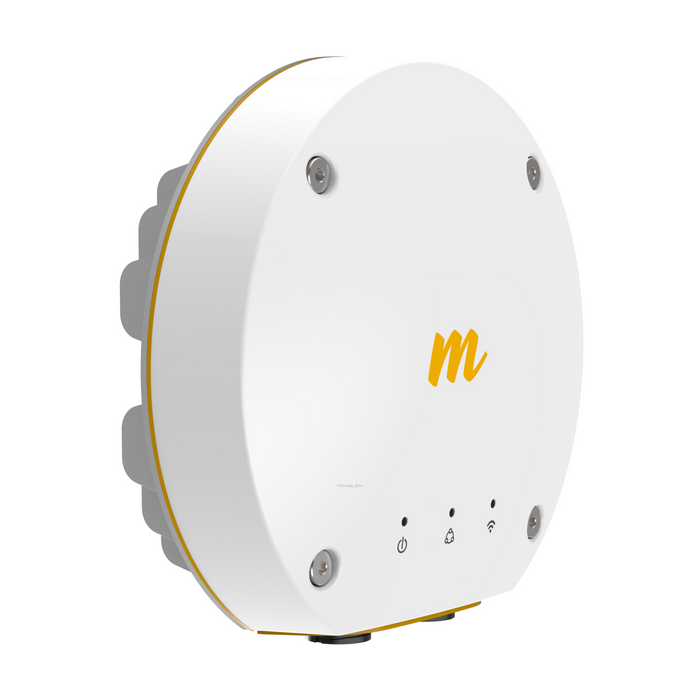

The Mimosa B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements, at the lowest cost per Mbps in the industry. The B11 provides link distances of over 62 miles (100+ km). This is Mimosa's first entry into the licensed backhaul market, and the B11 is unique in the industry with one radio covering the entire licensed 10.7-11.7GHz spectrum. This spectrum results in faster deployment through simplified equipment management and license acquisition. Mimosa’s network design tools provide instant insight into coordination success by providing a view of nearby licensed links across the band via the FCC licensed database.

Mimosa designed the B11 to be flexible to meet bandwidth directional demands, adapting the spectrum to meet immediate Internet traffic needs. As with all Mimosa backhaul products, the B11 uses spectrum analysis and load balancing to maximize bandwidth, frequency and power use based on real-time and historical data. The B11 is easy to deploy and is low-power and ultra-reliable, with fully integrated lightning ESD protection and IP67 rating.

Product Features:

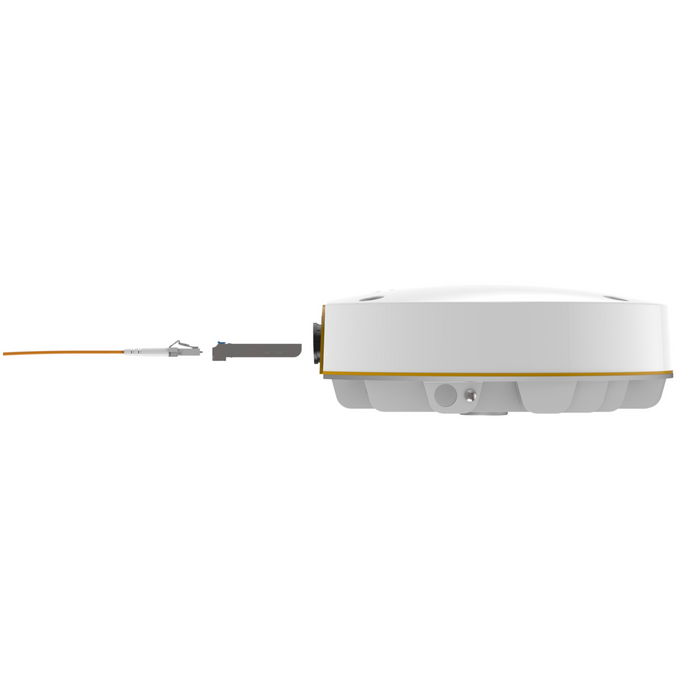

  • Fiber Ready
  • Precision Engineered for Reliability
  • IP67 Out of the Box
  • Revolutionary FCC Licensing
  • Gigabit Ethernet and Fiber Ports
  • Colocation Synchronization
  • GPS Location
  • Smart Spectrum Management
  • Smart Antenna Alignment


Product Specifications:
  • Max throughput: Up to 1.5Gbps IP aggregate UL/DL (1.7Gbps PHY)
  • Low latency: < 1ms
  • Wireless protocols: TDMA, TDMA-FD
  • MiMO & Modulation: 4x4:4 MiMO OFDM up to 256QAM
  • Bandwidth: Single or dual 20/40/80 MHz channels
  • Frequency range: 10000-11700 MHz restricted by country of operation
  • Max output power: 20dBm (2-stream), 27dBm (4-stream)
  • Max power consumption: 30W
  • Power method: 48V DC, 802.3at PoE (included)
  • ESD Protection: 6kV
  • Mounting: Circular Waveguide fed mounting bracket direct into antenna
  • Optional Data Connector: SFP Cage
  • Operating Temperature: -40deg C to +55deg C (-40deg F to 131deg F)
  • Operating Humidity: 5 to 100% condensing
  • Security: 128-bit AES PSK with hardware
  • QoS: Supports 4 pre-configured QoS levels
  • Approvals: FCC Part 101 and EN 302 217-2-2
  • RoHS compliance: Yes
  • Safety: UL/EC/EN/ 60950-1 + CSA-22.2
  • Protection Rating: IP67


Mimosa products are not eligible for exchange or credit. Returns accepted only with warranty.
