MikroTik OmniTIK 5 PoE Outdoor AP INTL [RBOmniTikUPA-5HnD]

This product has been discontinued by MikroTik. Suggested replacements is the RBOmniTikPG-5HacD or RBOmniTikU-5HnD

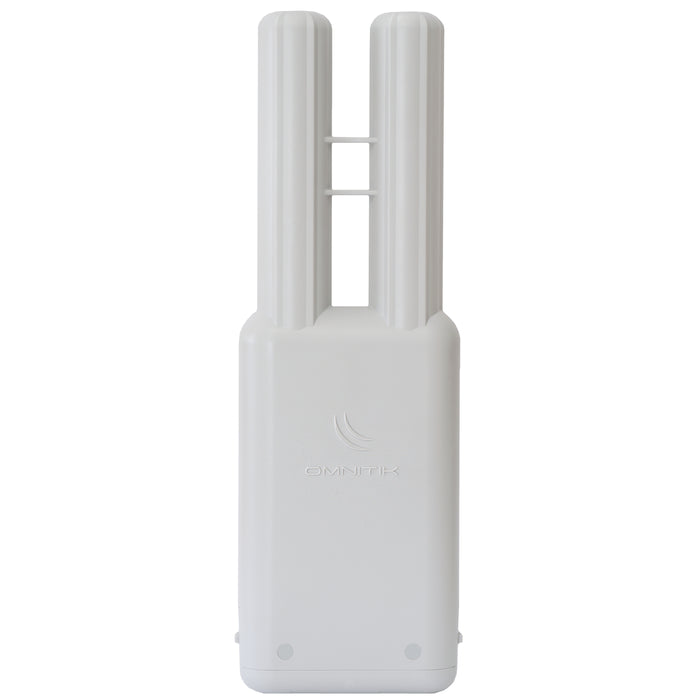

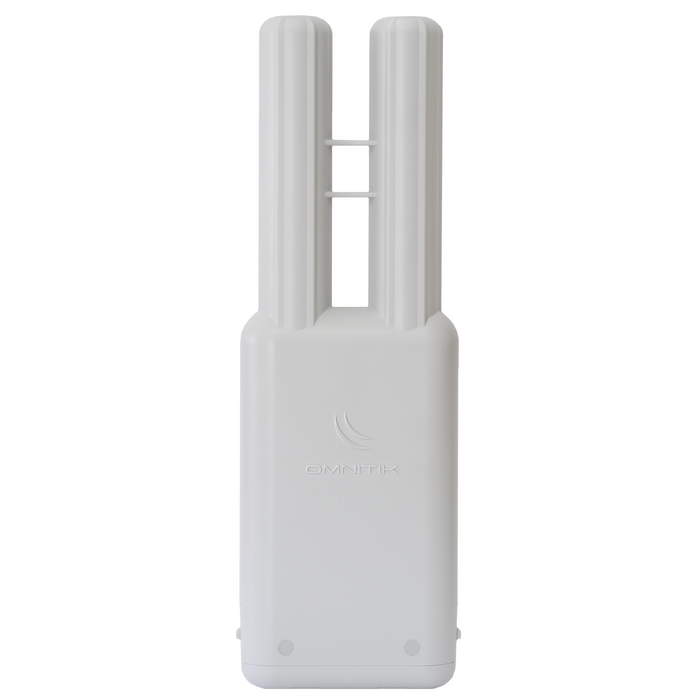

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 5GHz 802.11a/n standard device. Weatherproof, durable and ready to use. It has ve 10/100 Ethernet ports, PoE support and a built-in 1000mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive.

The OmniTIK UPA also features power output on it’s ethernet ports. Ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters to worry about.

RBOmniTikUPA-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

• CPU: Atheros AR9344 600MHz network processor
• Memory: 128MB DDR2 onboard memory

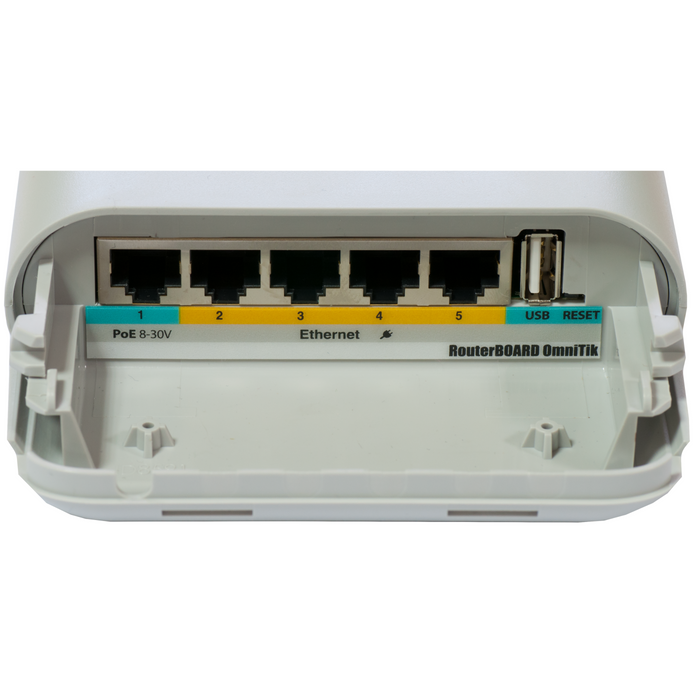

• Ethernet: Five 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU up to 2030
• Wireless: Wireless Built-in 5GHz 802.11a/n 2x2 MIMO
• Wireless regulations: Specific frequency range may be limited by country regulations
• Antenna: Two 7.5dBi (+/-1dBi) omni with different polarities (ch0 horizontal, ch1 vertical)
• Extras: Reset switch, Beeper, USB 2.0 port, Voltage monitor, Temperature monitor
• LEDs: 5 programmable LEDs (Ethernetactivity by default), one power LED
• Power input: Passive 11-30V PoE in only. 16KV ESD protection on RF port
• Dimensions: 177x44x44mm
• Operating temperature: -40°C .. +70°C tested
• Operating system: MikroTik RouterOS, Level 4 license MikroTik RouterOS, Level 5 license

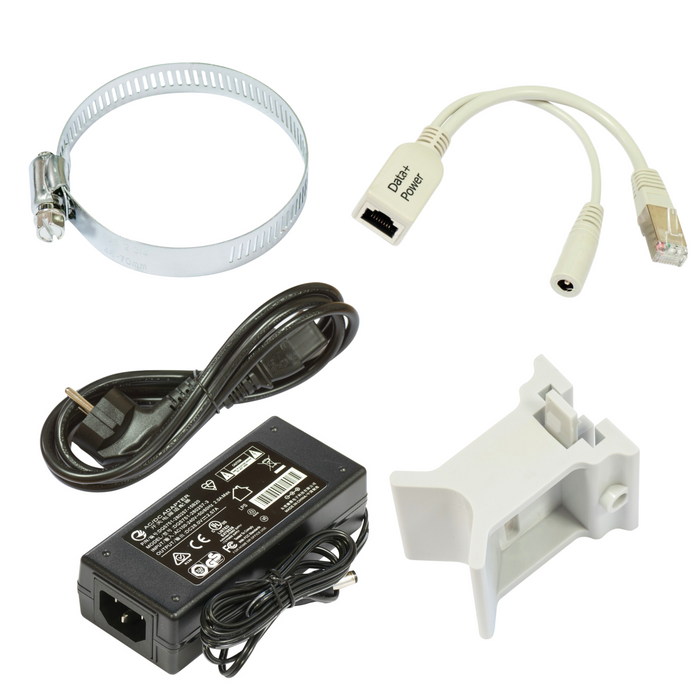

• (1) OmniTIK UPA-5HnD unit
• (1) mounting bracket
• (1) hose clamp
• (1) PoE injector
• (1) 24V 2.5A PSU (UPA-5HnD)
